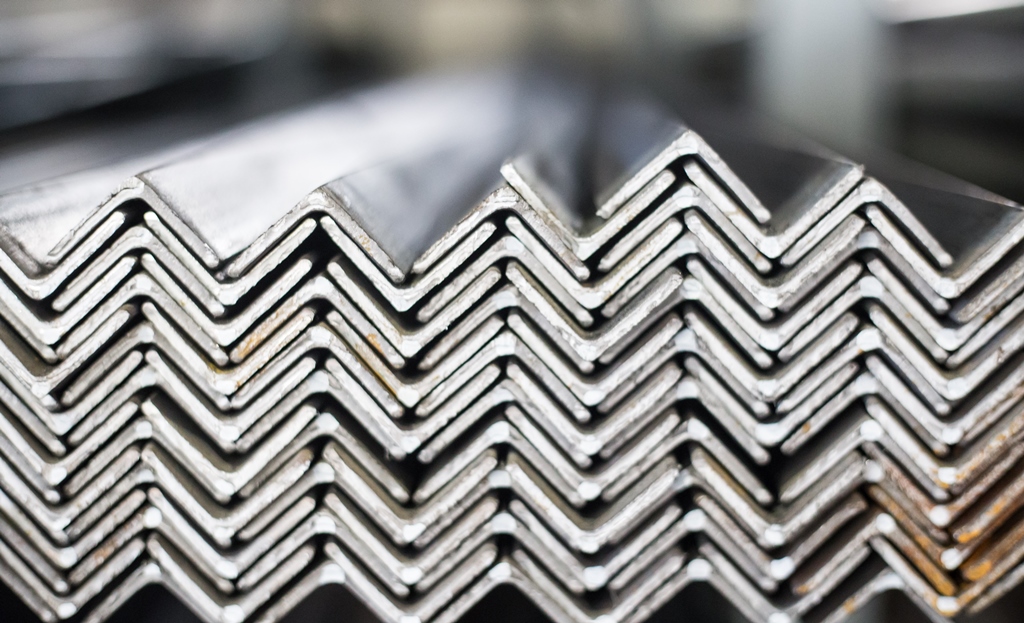

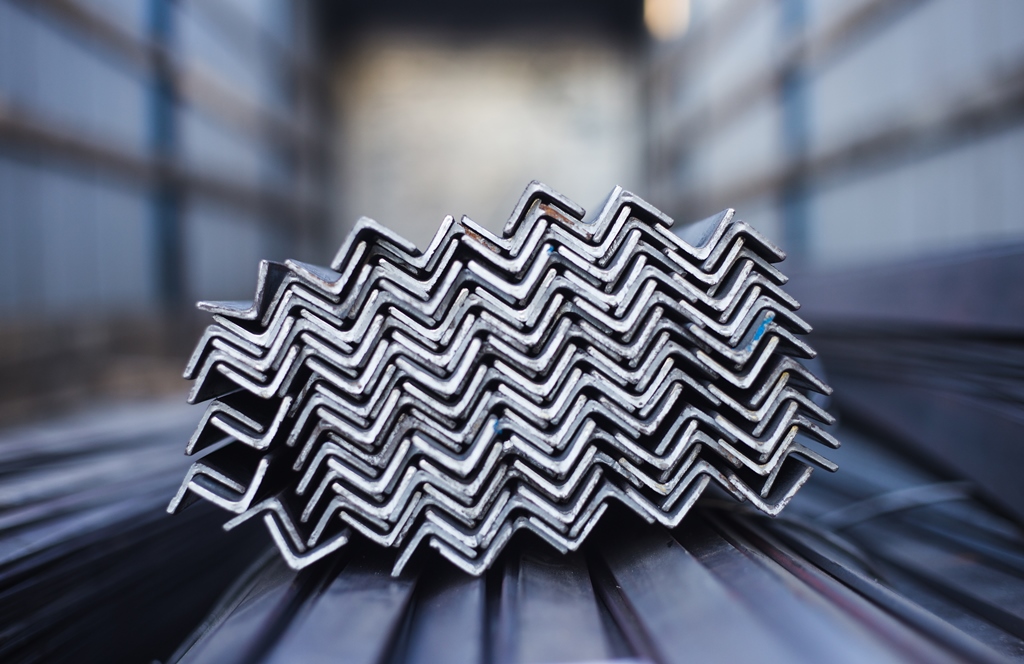

Kątowniki równoramienne:
o wym. 20x20 do 100x100 mm;
o gr. śc. 2,0 do 6,0 mm.
|
Wymiar a mm |
2.0 |
2.5 |
3.0 |
4.0 |
5.0 |
6.0 |
|
20 |
0.57 |
0.70 |
0.82 |
|
|
|
|
25 |
0.73 |
0.90 |
1.05 |
|
|
|
|
30 |
0.88 |
1.09 |
1.29 |
1.66 |
|
|
|
35 |
1.04 |
1.29 |
1.52 |
1.93 |
|
|
|
40 |
1.20 |
1.49 |
1.76 |
2.25 |
2.75 |
|
|
45 |
1.36 |
1.69 |
1.99 |
2.57 |
3.16 |
|
|
50 |
1.51 |
1.87 |
2.23 |
2.91 |
3.51 |
4.11 |
|
55 |
|
|
2.47 |
3.20 |
3.93 |
4.62 |
|
60 |
|
|
2.68 |
3.51 |
4.29 |
5.05 |
|
65 |
|
|
|
3.83 |
4.71 |
5.51 |
|
70 |
|
|
|
4.14 |
5.08 |
6.00 |
|
75 |
|
|
|
4.43 |
5.47 |
6.47 |
|
100 |
|
|
|
5.95 |
7.43 |
8.82 |
Kątowniki nierównoramienne (na zamówienie):
o wym. 25x15 do 80x50 mm;
o gr. śc. 2,0 do 5,0 mm.
|
Wymiar a mm |
2.0 |
2.5 |
3.0 |
4.0 |
5.0 |
|
25x15 |
0.58 |
0.71 |
0.82 |
|
|
|
25x20 |
0.66 |
0.80 |
0.94 |
|
|
|
30x20 |
0.73 |
0.88 |
1.06 |
1.31 |
|
|
30x25 |
0.81 |
0.98 |
1.18 |
1.47 |
|
|
40x20 |
0.89 |
1.10 |
1.30 |
1.66 |
|
|
45x30 |
1.05 |
1.30 |
1.53 |
1.98 |
|
|
40x30 |
1.13 |
1.39 |
1.65 |
2.14 |
|
|
50x25 |
1.13 |
1.39 |
1.65 |
2.14 |
2.55 |
|
50x30 |
1.21 |
1.49 |
1.77 |
2.29 |
|
|
50x40 |
1.37 |
1.69 |
2.00 |
2.57 |
3.14 |
|
50x45 |
|
|
2.10 |
2.73 |
3.34 |
|
55x20 |
1.13 |
1.39 |
1.62 |
2.10 |
|
|
60x40 |
1.51 |
1.86 |
2.22 |
2.89 |
3.53 |
|
60x45 |
|
2.47 |
3.19 |
3.91 |
|
|
70x40 |
|
|
2.47 |
3.19 |
3.91 |
|
70x45 |
|
|
2.59 |
3.35 |
4.10 |
|
80x40 |
|
|
2.71 |
3.52 |
4.32 |
|
80x50 |
|
|
2.94 |
3.83 |
4.71 |
